Trigger Schematic

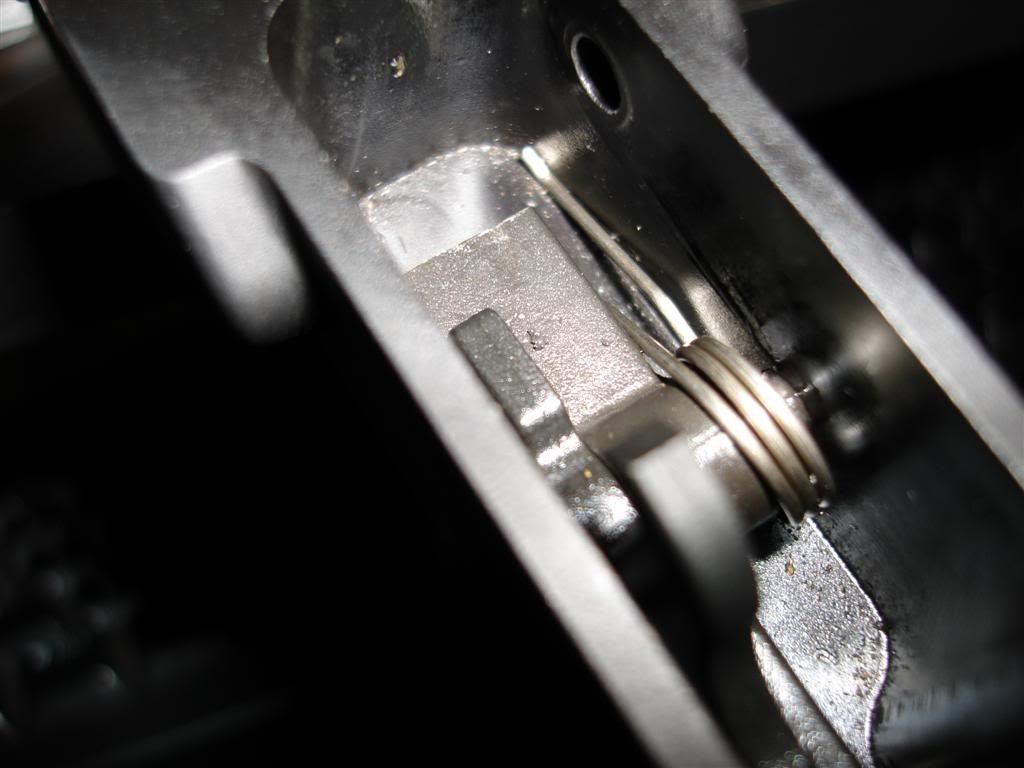

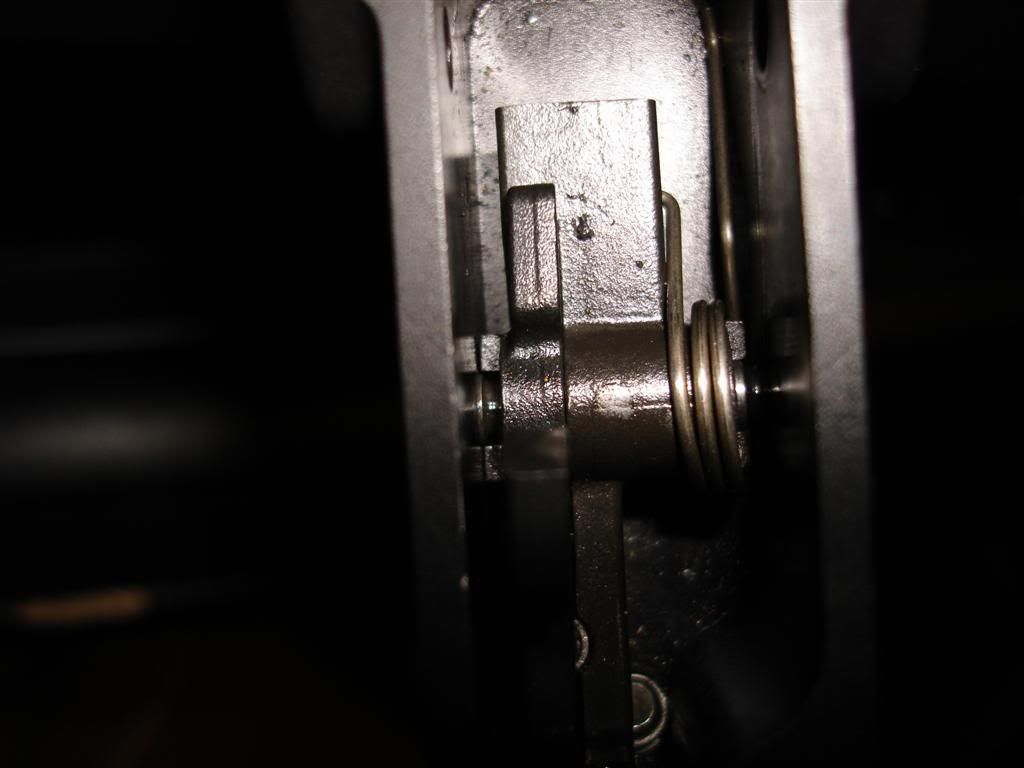

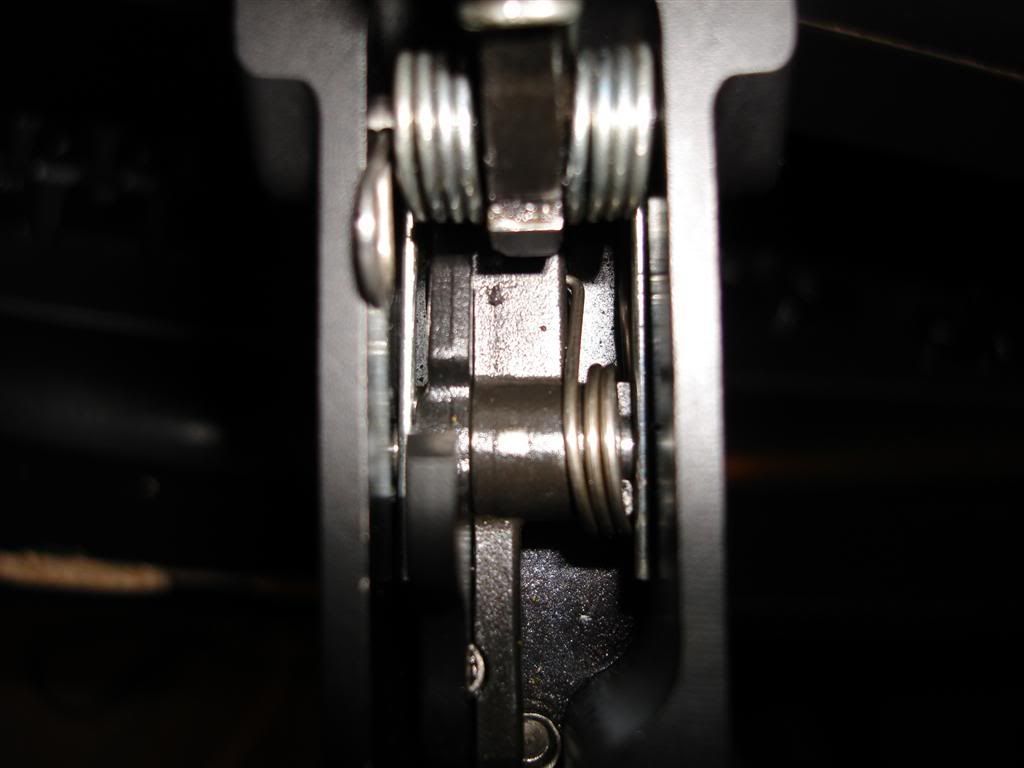

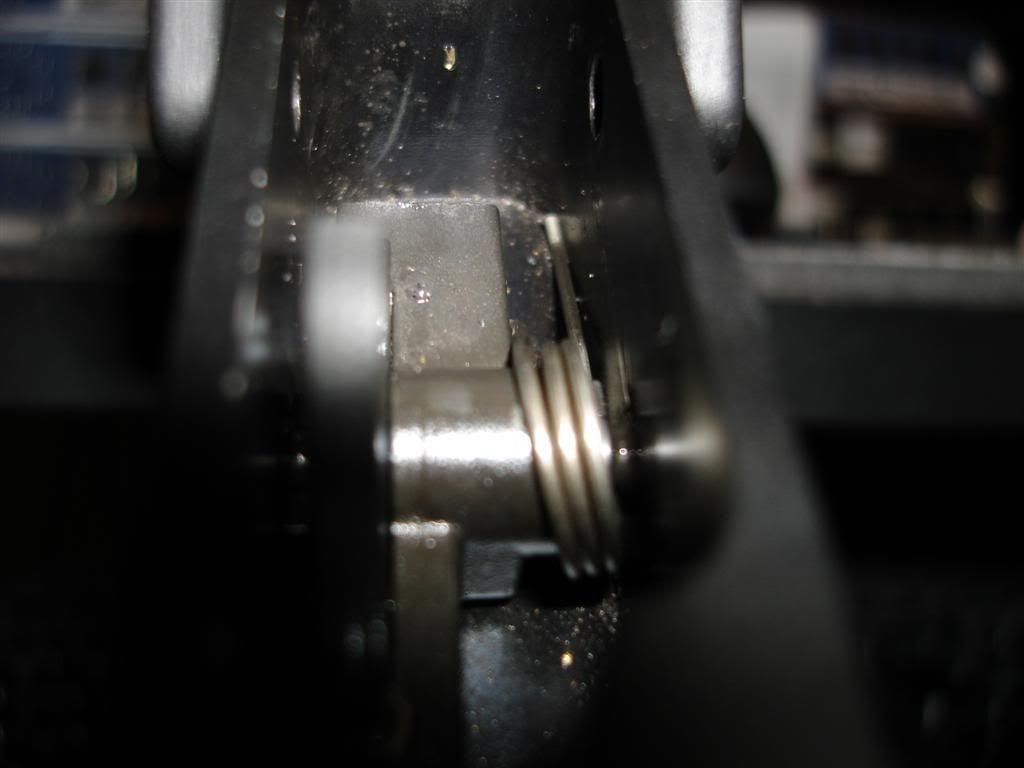

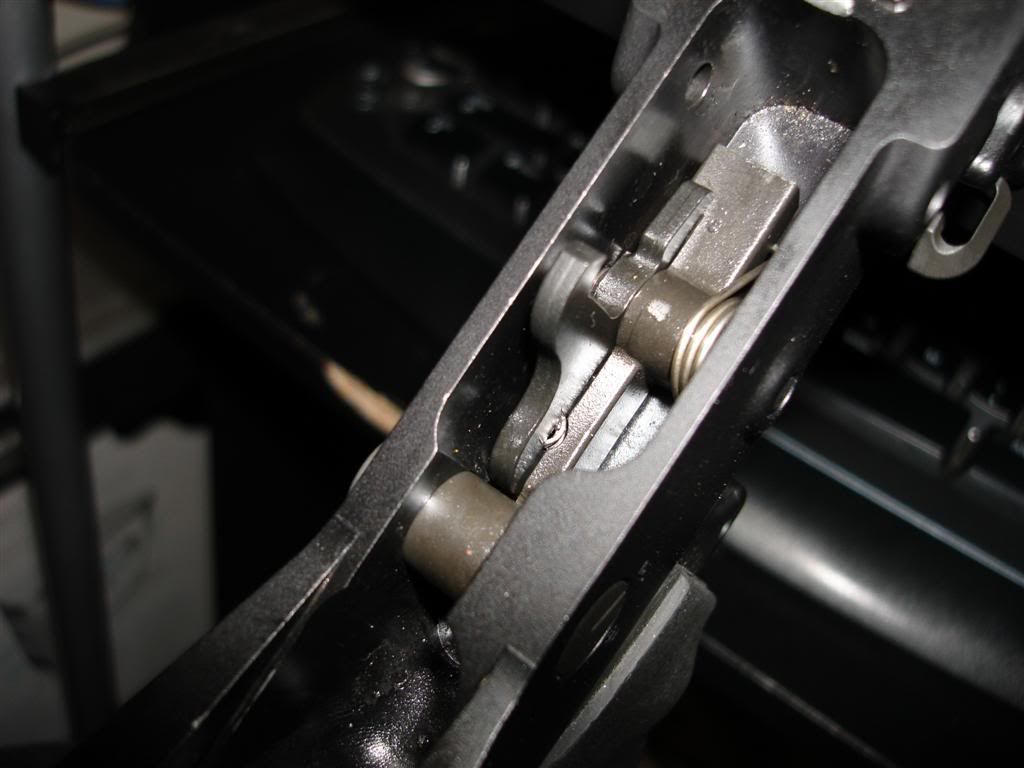

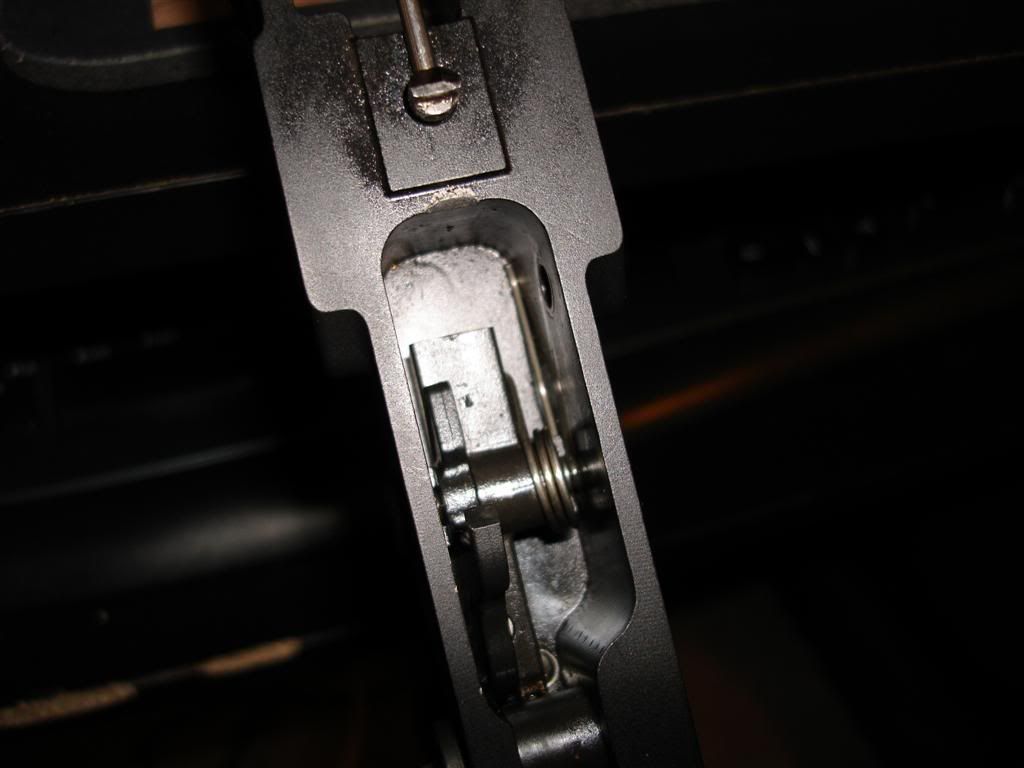

Thanks Azzy. That is a nice schematic but it is missing the reset spring which I believe is the hardest part to figure out... but the picture below showed how it is installed EXCELLENT job on the schem and pics.

What is the eaisest way to remove the Trigger Axis Pin ?

it should just push out

thanks for posting these pics.....I am wondering if anyone has installed a lighter trigger spring kit (ie: something like a JP spring kit?)
I used one in my AR15 and had "0"problems. Anything else I can do to lower the trigger weight?

From what I can tell send it to Bill Springfield he does a great job from what I have read, I have not sent mine yet but it should be going there soon

I am in Canada,....no way I can send it to the USA with out a PITA time thru customs.

Just shoot it alot it gets better.

Great post!

ArmChairCommando said:

Great post!

Click to expand...

+1

I had to use again after replacing the Hammer Spring on my 7.62 kit. I am not taking this thing apart on a regular basis so it is always nice to have something to look at to make sure I am doing it right.

Awesome post. Made it really easy for me to do a double check when I installed my new trigger.

Thanks for the Great Post AZ! I see how to do it, BUT, when one doesn't do it very often, these will be GREAT to rely upon!!

C/S

That came in handy!

Thanks!!!

MO said:

thanks for posting these pics.....I am wondering if anyone has installed a lighter trigger spring kit (ie: something like a JP spring kit?)
I used one in my AR15 and had "0"problems. Anything else I can do to lower the trigger weight?

Click to expand...

I realize this is extremely late, but my trip to the range was about 22 months late. I had Bill Springfield perform a trigger job on one of my XCRs with the old trigger. At that time I had him install the JP spring.
Big mistake. I just got back from the range where I had practically as many light strikes as rounds fired. Stick with the standard spring for this trigger or better yet get the 2-stage trigger if you do not already have it.

I realize this is extremely late, but my trip to the range was about 22 months late. I had Bill Springfield perform a trigger job on one of my XCRs with the old trigger. At that time I had him install the JP spring.
Big mistake. I just got back from the range where I had practically as many light strikes as rounds fired. Stick with the standard spring for this trigger or better yet get the 2-stage trigger if you do not already have it.

Click to expand...

I installed the JP yellow spring not long after I got my XCR.It was my first attempt at improving the trigger.My experience was exactly the same,not enough ass to poke the hard Russian primers.I also agree that the new trigger is the best way to go,for the money it's as good as any AR aftermarket trigger I've tried,and much more reliable.Not only that,but when you install the heavy spring specifically designed for the 7.62x39 kits it does not seem to change the trigger pull on the new style triggers,and it can be used with any of the caliber conversion kits. Personally I've never had any failures to ignite any primers using the standard spring,but using the heavy spring should even further guarantee it's reliable ignition. Good trigger pulls make shooting tiny groups easier,but it should be balanced against ultimate reliability in a fightin' rifle.

This is great, man. Thanks for posting.

I took a small buffing wheel with some chromium oxide to my trigger, buffed out ALL the contact points and re-blued (over the counter, not penetrating) took me about an hour and I now have a REALLY slick trigger.

This needs to be a Sticky. Forgot about this one.

Merlin said:

This needs to be a Sticky. Forgot about this one.

Click to expand...

it is stickied, in the "problems" section.
